Within the transport platforms for passengers and material, we have several ranges. One of them is the PT, made up of TRANSPORT PLATFORMS with a semi-open cabin, which is what differentiates them from the other 3 passengers and material hoists: the EDC 2000, the PMH and the EPM 1000.

With different load capacities to adapt to different configurations and building heights, the ALBA transport platforms are finished in galvanized steel and their motors, electrical and electronic components and steels are manufactured by leading European brands according to CE.

Transport platforms main features:

  • Up to 250 m high.
  • Maximum load capacity: 3.800 kg.
  • Masts compatible with other ALBA hoists.
  • Hoist control display with signaling LEDS.

Within the range of transport platforms, we offer 4 models:

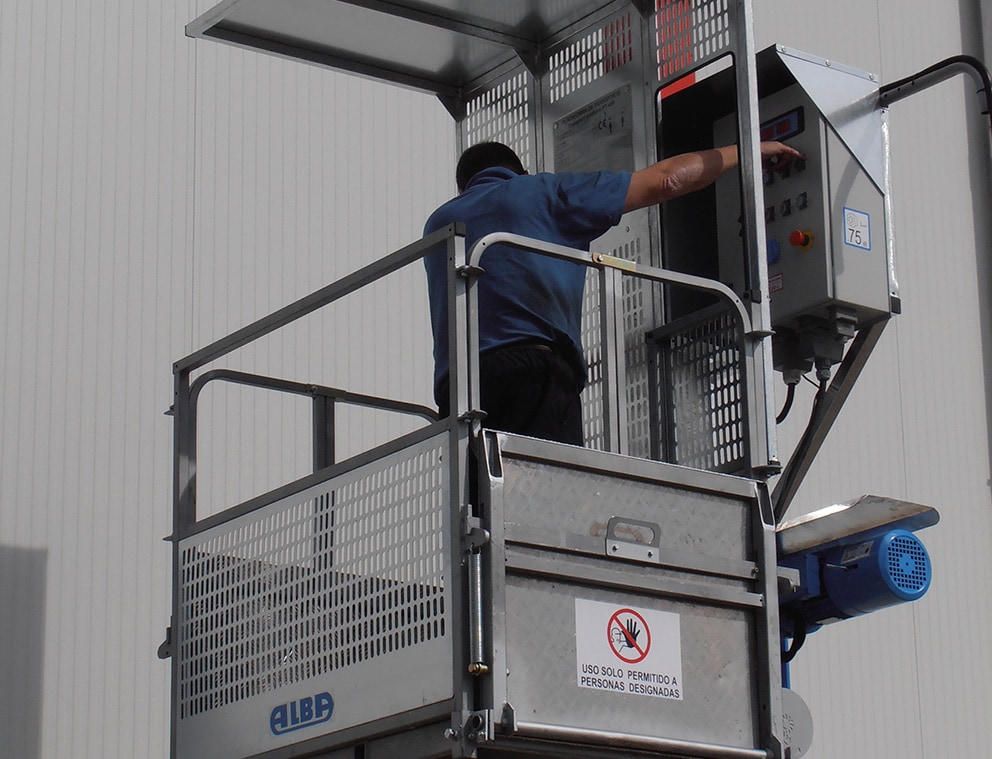

PT 450

THE BEST SOLUTION FOR TRANSPORTATION OF PASSENGERS AND MATERIAL IN MEDIUM-HEIGHT BUILDINGS

  • Appropriate for tight spaces (lift shaft).
  • Load capacity: 450 kg.
  • Maximum height: 90 m.
  • Maximum speed: 20 m/min.
  • Square tube mast compatible with MC 450 material hoist and PEC 90 mast climber.

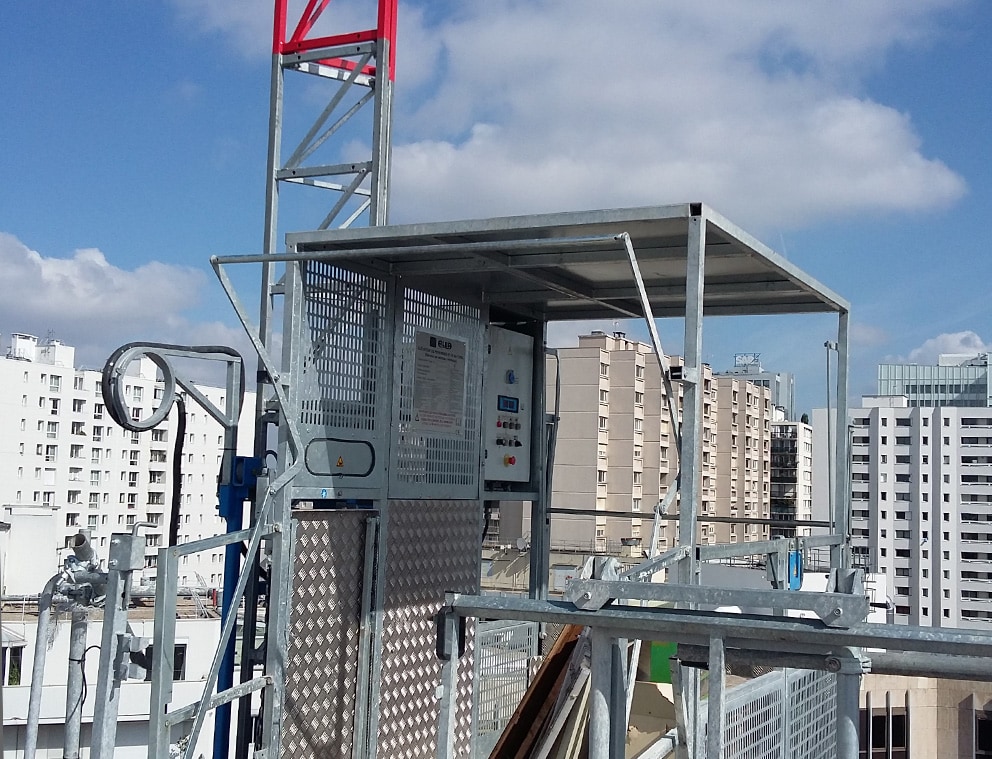

PT 1200

IDEAL FOR MEDIUM CONSTRUCTIONS AND GREAT REHABILITATIONS

  • Appropriate for hoisting drywall.
  • Load capacity: 1200 kg.
  • Maximum height: 120 m.
  • Maximum speed: 20 m/min.
  • Triangular mast compatible with PEC 120 mast climber, MC 1000 material hoist and EPM 1000.
  • Overspeed parachute with auto-recovery system.

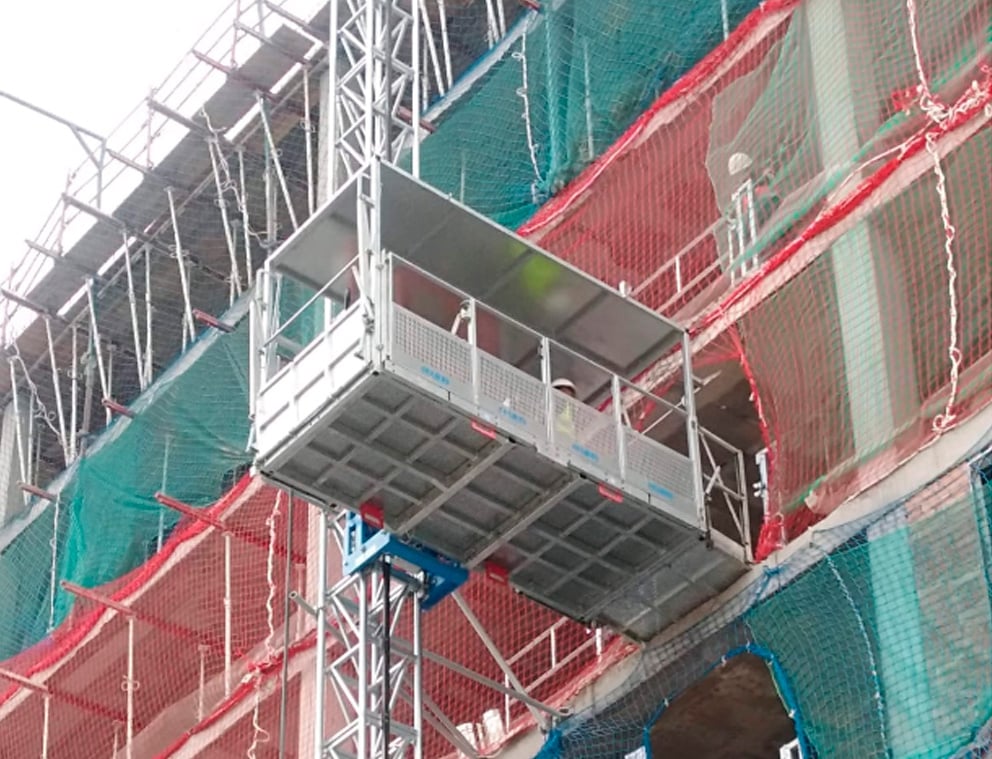

PT 1800

GREAT LIFTING CAPACITY IN LARGE SURFACES

  • Appropriate for hoisting drywall.
  • Load capacity: 1800 kg.
  • Maximum height: 250 m.
  • Maximum speed: 22 m/min.
  • Square mast also compatible with PEC 130 and PEC 150 mast climbers and the PTB 3800 transport platform.
  • It can be operated simultaneously by the same mast together with the EDC 2000 passengers and material hoist or the MC 2000 material hoist.
  • Possibility of incorporating a third loading door.
  • Overspeed parachute with auto-recovery system.

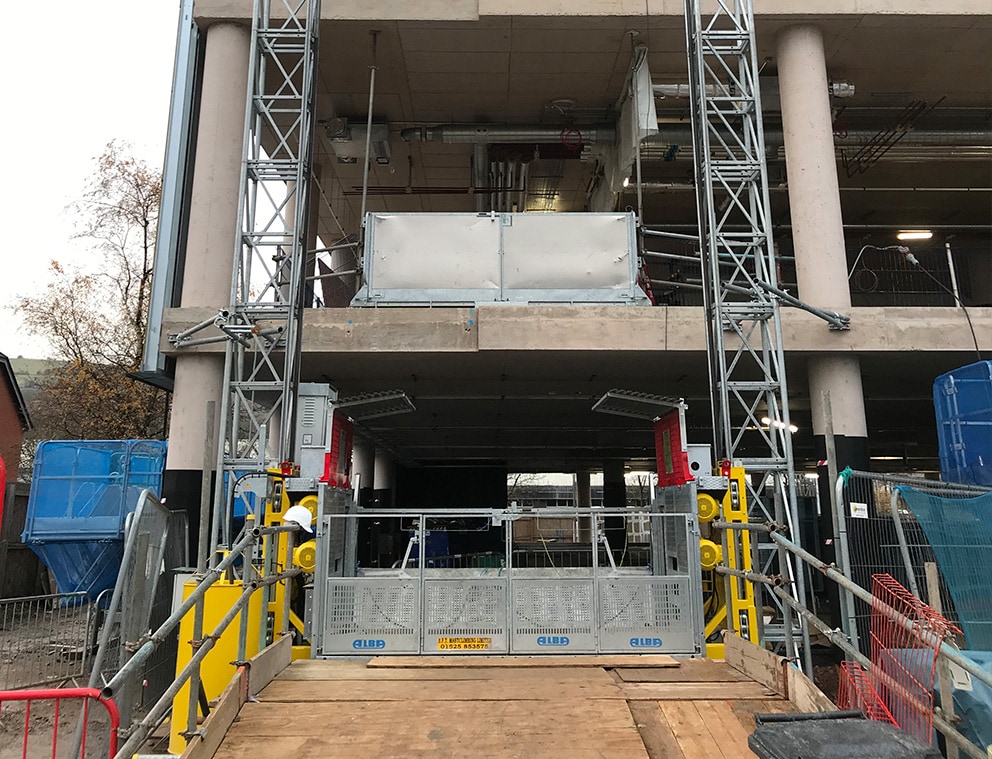

PTB 3800

OPTIMAL SOLUTION FOR TRANSPORTING GREAT LOAD VOLUMES FOR CONSTRUCTION

The PTB 3800 hoist is made up of a wide and versatile platform with 2 masts that work through a cardan system transmission.

This model presents new features that respond to market needs, such as a larger space specially designed to lift prefabricated structures and great construction equipment, achieving a faster and cheaper construction process.

One of the main advantages of our PTB 3800 is the loading and unloading width of more than 3 m, a rather unusual feature in this range of transport platforms that makes it easier to lift large materials.

  • Suitable for lifting prefabricated structures (kitchens, complete bathrooms, etc.).
  • Great load capacity: 3800 kg.
  • Maximum height: 250 m.
  • Maximum speed: 20 m / min.
  • Square mast compatible with several of our machines (PEC 130PEC 150MC 2000 and EDC 2000).
  • One of the square masts can be used by another hoist simultaneously.
  • Configurable with different cabin sizes up to 5,3 x 3,2 m.
  • Movement synchronization control system in both columns and an overspeed parachute with auto-recovery system.
  • CPU control and automatic floor selector.

All our hoists are lifted by different mast models, compatible with other ALBA lifts.

See the MASTS COMPATIBILITY table.

Do not hesitate to tell us the characteristics of your project and we will provide you a service adapted to your work needs.
